System Information Script

wget http://www.haganfox.net/site/uploads/Main.QuickSystemInfo/qsi.txt

qsi.sh (or just qsi) is a shell script that generates a text report showing some important system information at a glance.

The report provides an overview of the system's most significant properties. It answers some common questions you might have about the system's OS distribution, CPU, memory, kernel, filesystem, and network.

The script was originally written to provide a block of text you'd use to establish system changelog file (/etc/README.txt) on a freshly-installed Linux machine.

The script is intended to work on a wide variety of systems and adapt to varying circumstances. It doesn't require Bash, and nothing the script does requires root privileges.

Example Output

====  2016-10-28 System Information for LAPTOP-33  ====
Distribution: Ubuntu 14.04.5 LTS (2014-04)
1 CPU : Intel(R) Core(TM)2 Duo CPU T9600 @ 2.80GHz
        2 cores, 2 logical cores, 6144K cache
Memory: 3.8G RAM + 4.7G swap, with 942M + 4.7G free
Kernel: Linux 3.13.0-100-lowlatency x86_64
        #147-Ubuntu SMP PREEMPT Tue Oct 18 17:26:49 UTC 2016
Filesystems: /dev/sda2 is 268M ext3, with 131M available on /boot
             /dev/sda6 is 11G ext4, with 3.4G available on /
             /dev/sda7 is 37G ext4, with 21G available on /home
3 network interfaces: lo, eth0, wlan0
Gateway is 192.168.42.254/24 via wlan0 with IP 192.168.42.133

The Script

Text version: qsi.txt <---Right-click to download. Alternatively use wget:
wget http://www.haganfox.net/site/uploads/Main.QuickSystemInfo/qsi.txt
MD5SUM: aba1e38d1008a8979a125216f21282b7
SHASUM: 4a279a945fba5f5eee007dce5809ef3156cb6f42
SHA256SUM: f1b2cc1c9772cda18c713beeec1f568465b9a400303b9d574988754032cd3e81

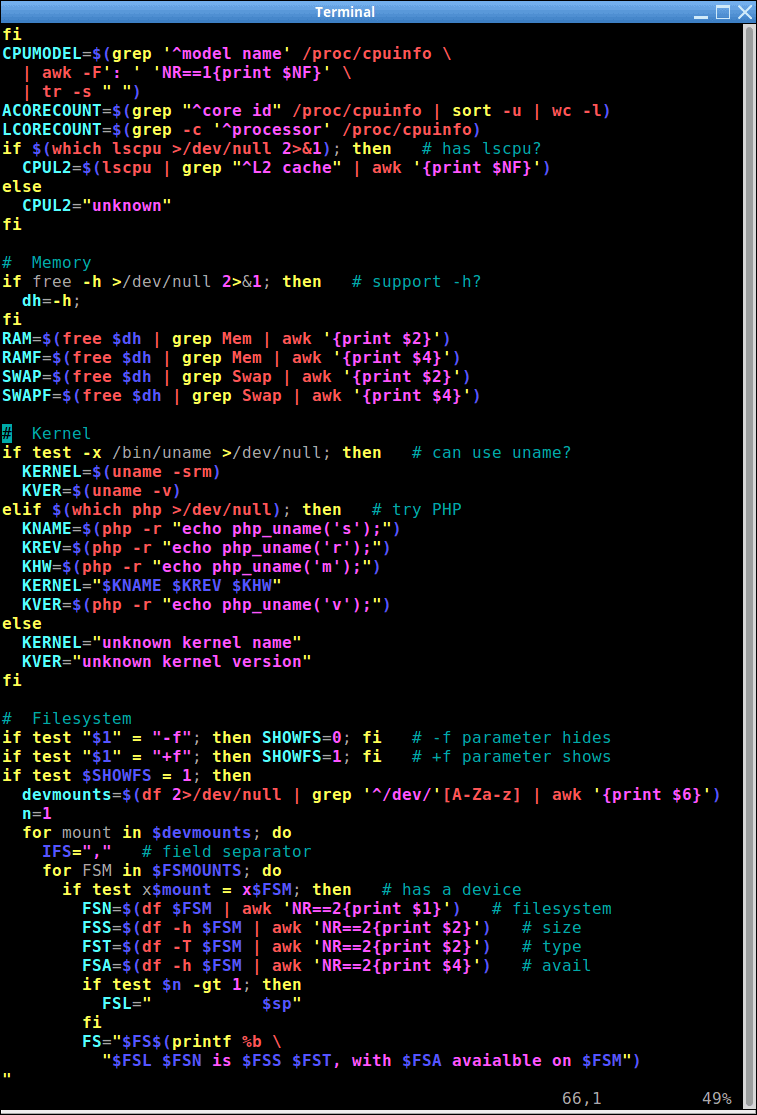

#!/bin/sh
#
# qsi(.sh) -- Prints a Quick System Information summary about the system's
# OS distribution, CPU, memory, kernel, filesystem(s), and network.
#
# http://www.haganfox.net/Main/QuickSystemInfo

##  Settings
#
## $SHOWFS determines if the Filesystem section will appear.
## 1 means show it, 0 means leave it out.
SHOWFS=1
#
## $FSMOUNTS is a comma-separated whitelist of filesystems
## that may be mounted on devices in /dev/ .
FSMOUNTS='/,/boot,/home,/opt,/root,/usr,/usr/local,/tmp,/var,/storage'

#  Title
DATE=$(date -I)
HOSTNAME=$(hostname)

#  Distribution
if test -f /etc/lsb-release; then
  DIST=$(grep DESCRIPTION /etc/lsb-release | awk -F'=' '{print $NF}' | tr -d \")
else
  DIST=$(cat /proc/version \
    | awk -F')' '{print $(NF-2)}' \
    | awk -F'(' '{print $NF}')
fi
DISTDATE=$(find /etc -type d 2>/dev/null \
  | xargs ls -d --full-time 2>/dev/null \
  | awk '{print $6}' \
  | awk -F'-' '{print $1"-"$2}' \
  | sort \
  | uniq -c \
  | sort -n \
  | awk 'END{print $2}')

#  CPU
CPUCOUNT=$(grep "^physical id" /proc/cpuinfo | sort -u | wc -l )
if test $CPUCOUNT -gt 1; then   # multiple CPUs?
  CPUS="s";
else
  CPUS=" ";
fi
CPUMODEL=$(grep '^model name' /proc/cpuinfo \
  | awk -F': ' 'NR==1{print $NF}' \
  | tr -s " ")
ACORECOUNT=$(grep "^core id" /proc/cpuinfo | sort -u | wc -l)
LCORECOUNT=$(grep -c '^processor' /proc/cpuinfo)
if $(which lscpu >/dev/null 2>&1); then   # has lscpu?
  CPUL2=$(lscpu | grep "^L2 cache" | awk '{print $NF}')
else
  CPUL2="unknown"
fi

#  Memory
if free -h >/dev/null 2>&1; then   # support -h?
  dh=-h;
fi
RAM=$(free $dh | grep Mem | awk '{print $2}')
RAMF=$(free $dh | grep Mem | awk '{print $4}')
SWAP=$(free $dh | grep Swap | awk '{print $2}')
SWAPF=$(free $dh | grep Swap | awk '{print $4}')

#  Kernel
if test -x /bin/uname >/dev/null; then   # can use uname?
  KERNEL=$(uname -srm)
  KVER=$(uname -v)
elif $(which php >/dev/null); then   # try PHP
  KNAME=$(php -r "echo php_uname('s');")
  KREV=$(php -r "echo php_uname('r');")
  KHW=$(php -r "echo php_uname('m');")
  KERNEL="$KNAME $KREV $KHW"
  KVER=$(php -r "echo php_uname('v');")
else
  KERNEL="unknown kernel name"
  KVER="unknown kernel version"
fi

#  Filesystem
if test "$1" = "-f"; then SHOWFS=0; fi   # -f parameter hides
if test "$1" = "+f"; then SHOWFS=1; fi   # +f parameter shows
if test $SHOWFS = 1; then
  devmounts=$(df 2>/dev/null | grep '^/dev/'[A-Za-z] | sort | awk '{print $6}')
  n=1
  for mount in $devmounts; do
    IFS=","   # field separator
    for FSM in $FSMOUNTS; do
      if test x$mount = x$FSM; then   # has a device
        FSN=$(df $FSM | awk 'NR==2{print $1}')   # filesystem
        FSS=$(df -h $FSM | awk 'NR==2{print $2}')   # size
        FST=$(df -T $FSM | awk 'NR==2{print $2}')   # type
        FSA=$(df -h $FSM | awk 'NR==2{print $4}')   # avail
        if test $n -gt 1; then
          FSL="           $sp"
        fi
        FS="$FS$(printf %b \
          "$FSL $FSN is $FSS $FST, with $FSA available on $FSM")
"
        sp=" "
        n=$(expr $n + 1)
      fi
    done
  done
  if test $n -gt 2; then
    FSL="Filesystems:"
  else
    FSL="Filesystem:"
  fi
fi

#  Network
if ! echo :$PATH: | grep -q ":/sbin:"; then   # $PATH has /sbin?
  PATH=$PATH:/sbin;
fi
IFCOUNT=$(ip -o link show | wc -l)
IFNAMES=$(ip -o link show | awk -F':' '{print $2}' | paste -s -d, -)
GW=$(ip route get 8.8.8.8 | awk 'NR==1{print $3}')
if ip addr | grep -q 'state UP'; then   # is "state UP" shown?
  MASK="/$(ip addr \
    | grep -A2 'state UP' \
    | awk 'END{print $2}' \
    | awk -F'/' '{print $2}')"
fi
GWNIC=$(ip route get 8.8.8.8 | awk 'NR==1{print $5}')
IPADDR=$(ip route get 8.8.8.8 | awk 'NR==1{print $NF}')

# Output
cat << EOT
====  $DATE System Information for $HOSTNAME  ====
Distribution: $DIST ($DISTDATE)
$CPUCOUNT CPU$CPUS: $CPUMODEL
        $ACORECOUNT cores, $LCORECOUNT logical cores, $CPUL2 cache
Memory: $RAM RAM + $SWAP swap, with $RAMF + $SWAPF free
Kernel: $KERNEL
        $KVER
$FSL$FS$IFCOUNT network interfaces:$IFNAMES
EOT
if test x = x$GW; then
  echo "There is no gateway address."
else
  echo "Gateway is $GW$MASK via $GWNIC with IP $IPADDR"
fi

Installation

You can run the script as a system-wide executable or your can run it locally.

System-wide Installation

Download the script, rename it to qsi.

mv qsi.txt qsi

Set the owner and permissions.

chmod 755 qsi
sudo chown root.root qsi

Put the file in /usr/local/bin/.

sudo mv qsi /user/local/bin/

Run the script system-wide with

qsi

Local Installation

Download the script, rename it to qsi.sh.

mv qsi.txt qsi.sh

Set permissions.

chmod 700 qsi.sh

Run the script locally with

./qsi.sh

Questions Answered

General

  1. When was the report created?
  2. What's the hostname?
  3. What distribution is installed?
  4. What's the distribution's date?

CPU

  1. How many CPUs are installed?
  2. What model CPU(s)?
  3. How many actual CPU cores?
  4. How many logical CPU cores?
  5. How much L2 Cache?

Memory

  1. How much RAM is installed?
  2. How much swap space is allocated?
  3. How much RAM is free?
  4. How much swap is free?

Kernel

  1. What kernel is running?
  2. What's the kernel version?

Filesystem

(for each mounted filesystem in the whitelist)

  1. Which directories are separate mounted filesystems?
  2. What is the/each filesystem type?
  3. How large is the/each filesystem?
  4. What partition is the/each filesystem mounted on?
  5. How much space is available?

Network

  1. How many network interfaces?
  2. What are the network interfaces' names?
  3. What's the default gateway?
  4. Which interface points to the default gateway?
  5. What's that interface's IP address?
  6. What's the netmask?

What it Does

  • Get the date, in ISO format.
  • Get the hostname.
  • Test to see if /etc/lsb-release exists.
    • If so, get distribution information.
    • If not, refer to /proc/version .
  • Get the number of physical CPUs.
  • Get the CPU model.
  • Count the number of actual cores.
  • Count the number of logical cores.
  • Determine if the lscpu command is available,
    • if so, get the amount of L2 cache,
    • if not use "unknown".
  • Determine if the free command supports the -h (human readable) option.
  • Get RAM and swap statistics (total and free, in human-readable format if available).
  • Check whether the uname command is available.
    • If so, use uname to get the kernel (name/release/machine) and kernel version information.
    • If not, check if command-line PHP is available and use that instead to get the same information.
  • Add ":/sbin" to the command path if it's not included.
  • Get the number of network interfaces.
  • Get the names of the network interfaces.
  • Get the number of gateway address(es), if any.
  • Count the number of dots in the gateway-address results.
  • Determine the IP address of the interface that points to the gateway IP address(es).
  • Print the report, except the last line (network information).
  • Only print the network information if one gateway was reported.
    • If there's no gateway, report that.
    • If there are multiple gateways, report that.

Commands Used

date
print the system date
hostname
show the system's host name
test
compare values
grep
print lines matching a pattern
awk
pattern scanning and processing
cat
send text to standard output
sort
sort lines of text files
wc
print newline counts
tr
delete characters
which
shows the path of a command
lscpu
display CPU information
free
display the amount memory
uname
print system information
php
command line PHP command
df
report file system disk space usage
echo
display a line of text
printf
format and print data
expr
evaluate expressions
ip
display interface properties
paste
merge lines of files
route
show the IP routing table

Changelog

2106-10-24

  • Added a line of information about the root filesystem.

2016-10-26

  • Now getting OS version from /proc/version if /etc/lsb-release isn't present.
  • Switched to a more reliable way of determining the gateway and network interface settings.
    • On systems with multiple gateways, the one that reaches the Internet is shown now.
    • The CIDR-notation netmask, if attainable, is shown after the gateway address.
  • Improved the filesystem section so it dynamically includes filesystems than / (the root filesystem).
    • Added a setting to either display the Filesystem section or leave it out of the report.
    • New -f and +f parameters will hide/show the Filesystem section regardless of how the default is set.
    • Added a setting that provides a configurable whitelist of directories that could possibly be mounted filesystems.

2016-10-28

  • Improved the Filesystem section.
    • For a single filesystem the label says "Filesystem:" and for two or more it says "Filesystems:".
    • Rearranged the items so they're easier to scan visually.
  • Add a reliable best-guess of the originally-installed distribution's date (month and year) to the Distribution line. On some upgraded systems it can report an older date than that of the current distro. In the example output above you can tell Ubuntu Studio 14.04.0 was originally installed and the system has been upgraded to 14.04.5, which is useful information.

2017-02-02

  • Improved distribution-date detection. Now the year is always shown accurately.

2017-02-23

  • Added sorting when there are multiple lines in the filesystems section.

ToDo

  • Test the script in a multi-CPU system.

System Info Command (inxi)

Need more details? Try this:

inxi -Fxzc0

 -F Full output
 -x add verbosity
 -z Hide MAC address
 -C0 Color Scheme 0 (monochrome)

It'll show you information with these headings: System, Machine, CPU, Graphics, Audio, Network, Drives, Partition, RAID, Sensors, Info.

See also the lshw (list hardware) command for some detailed information about hardware, including what memory is installed.
